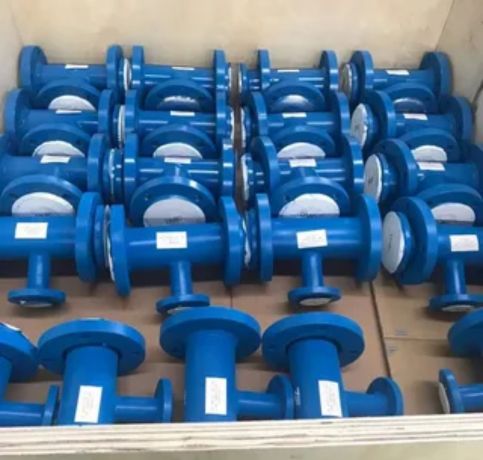

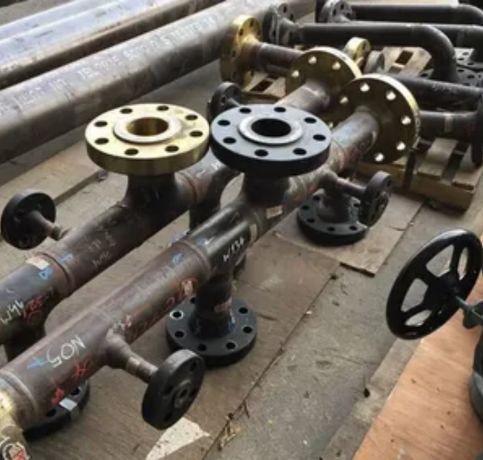

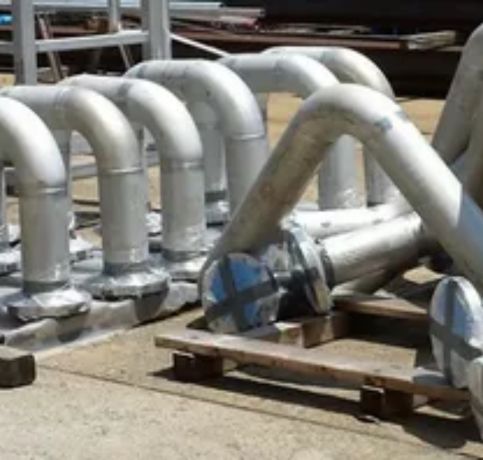

Leading the industry in Indonesia, we specialize in manufacturing high-quality PTFE, FEP, and PFA lined pipe spools and flanged pipe spools. Pipe spool is a factory-fabricated portion of a piping system made of pipes, flanges, and fittings integrated into an installation-ready unit. It facilitates easy on-site installation and decreases construction duration. Lined spools, particularly PTFE-lined, provide excellent corrosion resistance, chemical inertness, and smooth flow, thus suitable for handling aggressive media. Benefits include lower maintenance, longer service life, and suitability with large numbers of chemicals. Custom manufacture enables detailed adjustment to project specifications, assuring quality and fit. The chemical processing, oil & gas, water treatment, and pharmaceutical industries are advantageously served with PTFE lined pipe spools in Indonesia.
A PTFE-lined pipe spool is a piping section with an internal lining of Polytetrafluoroethylene (PTFE), a very inert and non-reactive fluoropolymer. It has the mechanical strength of steel and the chemical resistance of PTFE, making it suitable for conveying corrosive or toxic chemicals. The PTFE lining offers resistance against metal corrosion, smooth passage of the fluid, and is capable of withstanding high temperatures and aggressive media. These spools are pre-assembled for easy installation and find widespread use in such industries as pharmaceuticals, petrochemicals, chemicals, and water treatment where purity and corrosion resistance are crucial. They facilitate system life extension as well as reduced maintenance needs.
Maitrik PTFE Lining is a leading supplier of PTFE Lined Pipe spool in Jakarta, Indonesia, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
| Nominal Bore | Internal Dia. (d) | PTFE Liner Thickness (t) | FLANGE P. C. D | Flange Hole Dia. | Raised | Max.Length | Pipe Schedule | |
|---|---|---|---|---|---|---|---|---|
| mm | Inches | (± 1 mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||
| 25 | 1 | 19.5 | 3.3 | 79.4 | 15.9 | 51 | 3000 | 40 |
| 40 | 1.5 | 33.8 | 3.3 | 98.4 | 15.9 | 73 | 3000 | 40 |
| 50 | 2 | 45.4 | 3.3 | 120.6 | 19.0 | 92 | 3000 | 40 |
| 80 | 3 | 70.8 | 3.3 | 152.4 | 19.0 | 127 | 3000 | 40 |
| 100 | 4 | 95.2 | 3.8 | 190.5 | 19.0 | 157 | 3000 | 40 |
| 150 | 6 | 145.1 | 4.5 | 241.3 | 22.2 | 216 | 3000 | 40 |
| 200 | 8 | 197.4 | 5.0 | 298.4 | 22.2 | 270 | 3000 | 30 |
| 250 | 10 | 249.3 | 6.0 | 362.0 | 25.4 | 324 | 3000 | 30 |
| 250 | 10 | 249.3 | 6.0 | 362.0 | 25.4 | 324 | 3000 | 30 |
| 300 | 12 | 300.1 | 6.0 | 431.8 | 25.4 | 381 | 3000 | 30 |
PTFE lining protects the pipe spool from highly corrosive chemicals, acids, and solvents, extending the system’s lifespan.
Reduces friction, prevents buildup, and ensures consistent flow of media, even with sticky or aggressive substances.
Performs reliably under a broad range of temperatures and pressures without degrading or reacting.
Minimizes the need for frequent inspections, repairs, and replacements, lowering operating costs.
They provide superior chemical resistance and temperature stability for handling aggressive fluids.
The linings are extruded or molded onto metal pipes, ensuring a strong bond and uniform coverage.
Yes, PFA can withstand up to 260°C (500°F), while PTFE and FEP are also heat-resistant.
Yes, they are highly durable, offering long-lasting protection against corrosion and wear.
They work with most chemicals but may not be compatible with alkali metals or highly reactive substances
We are the leading Manufacturer and Supplier of PTFE Lined Pipe, Fittings, Flanges, Spool and Valves in Indonesia,
