PTFE Lined Tubular Sight Glass: PTFE-lined tubular sight glasses give an unrestricted view of fluid flow in pipelines while offering superior chemical resistance and durability. The PTFE lining offers resistance to corrosion by aggressive chemicals and is thus best used in chemical, pharma and food processing industries. They are light in weight easy to install and require minimal maintenance. They provide secure non-reactive observation in acid alkali and solvent systems. Their resistance to high temperature and pressure improves operating safety and reliability, providing effective process monitoring in challenging conditions.

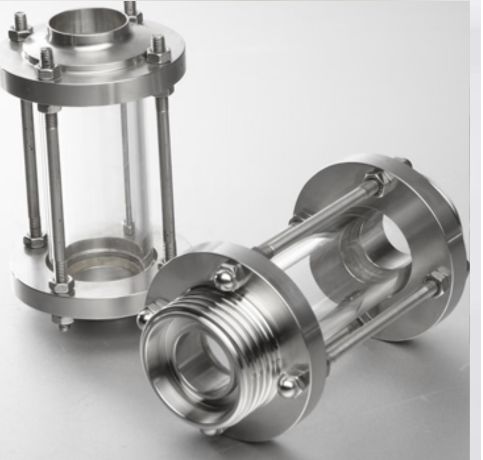

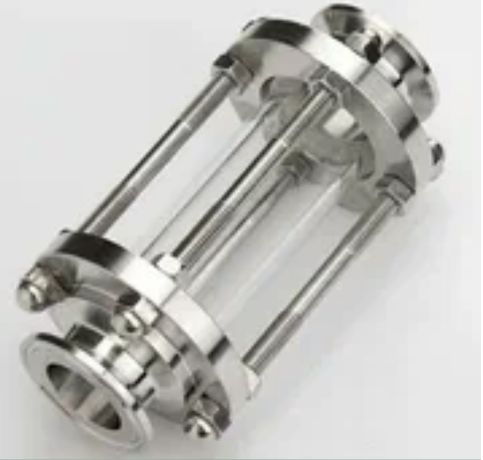

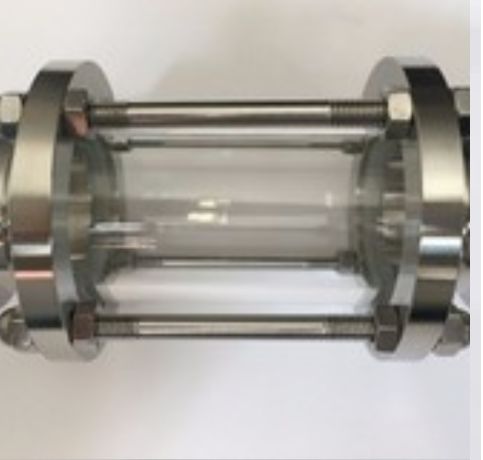

PTFE lined tubular sight glass is a high-tech industrial instrument used for visual observation of the flow of fluids in pipelines. It is a transparent glass tube surrounded by a protective PTFE (Polytetrafluoroethylene) coating which improves chemical resistance and avoids corrosion when used with aggressive or dangerous chemicals. The PTFE coating makes it especially suitable for the pharmaceuticals, chemicals and food processing industries. It offers great visibility of the flowing medium with safety and durability under high pressure, temperature, and chemically reactive conditions. It guarantees consistent performance in harsh applications.
| Size | : | ½” to 12” (15 NB to 300 NB) |
| Manufacturing Standard | : | ASME 16.5, Class 150# |
| Body & Lining | : | MS/DI/CS/SS PTFE/ FEP/ PFA/ PVDF |
| Design | : | Fixed Flange End |
| Pressure | : | Metal Body with lining 5~10 kg/cm² Metal Body without lining 28kg/cm² |
Maitrik PTFE Lining is a leading supplier of PTFE Lined Tubular Sight Glass in Jakarta, Indonesia, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
B – 1 | SIGHT GLASS | ||
C – 2 | |||
15 | 50 | ||
25 | 25 | 65 | 89 |
15 | – | – | |
40 | 25 | 75 | 102 |
40 | – | – | |
15 | – | – | |
50 | 25 | 85 | 114 |
40 | – | – | |
15 | – | – | |
80 | 25 | 110 | 140 |
40 | – | – | |
15 | – | – | |
100 | 25 | 130 | 165 |
40 | – | – | |
15 | – | – | |
150 | 25 | 170 | 203 |
40 | – | – | |
15 | – | – | |
200 | 25 | 200 | 279 |
40 | – | – | |
15 | – | – | |
250 | 25 | 250 | 279 |
40 | – | – | |
15 | – | – | |
300 | 25 | 276 | 305 |
40 | – | – | |
PTFE lining provides excellent resistance to corrosive chemicals, ensuring durability even in harsh environments.
PTFE withstands high temperatures, making it suitable for processes involving heat-intensive operations.
PTFE lining minimizes risks of leaks or contamination, ensuring safe operation in critical systems.
The smooth, non-stick surface of PTFE minimizes residue buildup, reducing cleaning and maintenance efforts.
PTFE-lined sight glasses typically cannot be repaired; damaged units are usually replaced to maintain safety and performance standards.
PTFE-lined sight glasses typically range from 15mm to 300mm, with ANSI, DIN, JIS standards, and threaded/flanged connections.
Yes, hydrostatic and pneumatic pressure tests are conducted on PTFE-lined sight glasses to ensure leak-proof performance and structural integrity.
SS PTFE lined pipes typically handle temperatures from -60°C to +200°C and pressures up to 150 PSI, depending on design and specifications, offering reliable performance in demanding industrial environments.
Yes, sight glasses are inspected for PTFE lining uniformity and adhesion to ensure durability, chemical resistance, and defect-free performance.
