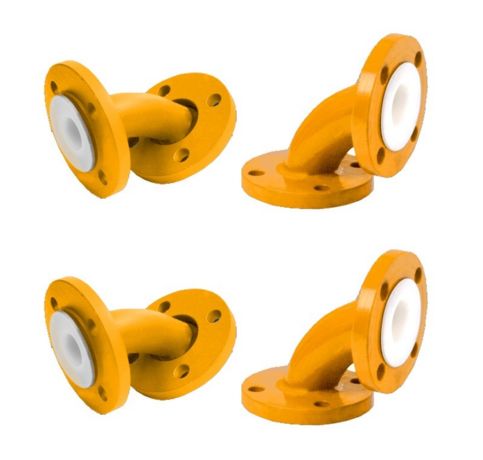

Maitrik PTFE Lining is a reputable best-class supplier and producer of FEP, PTFE, and PFA lined elbows in Indonesia. Our PTFE Lined Elbows are precisely designed to perform correctly under strongly corrosive and high-temperature environments. They are available with 45-degree and 90-degree bends in smooth change in direction of flow and very good chemical resistance and high mechanical strength. We are based in Jakarta and supply long-lasting, precision-made lined elbows that can take the demanding use of industrial services. In-house production guarantees reliable, leak-tight performance under extreme conditions.
A PTFE Lined Elbow is utilized for redirecting flow in piping systems for corrosive or high-purity fluids. It consists of a heavy carbon steel or stainless steel casing and a PTFE (Polytetrafluoroethylene) internal lining that has superior chemical resistance and a smooth non-stick finish. PTFE lined elbows are typically used in chemical processing, pharmaceutical, food and beverage, and water treatment processes. They provide free fluid flow, prevent contamination, and withstand corrosion and heat, even in harsh conditions.
Size : 25 NB to 300 NB
Flanges Used : ASTM A 105/IS 2062/SS 304/SS 316
Hydro Test : at 29.8 Kg/cm2
Spark Test : 15 KVA
Outer body : ASTM A 234 Gr WPB SCH-40/SS 304/SS 316
Lining : PFA
Maitrik PTFE Lining is a leading supplier of PTFE Lined Elbow in Jakarta, Indonesia, offering high-quality, corrosion-resistant solutions ideal for chemical, pharmaceutical, and industrial applications.
NB | ID | RF | OD | PCD | No.Of Holes x Dia Of Holes | Lining Thickness Standard | Lining Thickness Full Vacuum | Length Max. |
| 15 | 10.80 | 34.90 | 88.9 | 60.3 | 4×15.9 | 3.0 | 3.1 | 3000 |
| 20 | 16.00 | 42.70 | 98.4 | 69.8 | 4X15.9 | 3.0 | 3.1 | 3000 |
| 25 | 20.15 | 50.80 | 108.0 | 79.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 40 | 33.90 | 73.00 | 127.0 | 98.4 | 4X15.9 | 3.2 | 3.5 | 3000 |
| 50 | 45.50 | 92.10 | 152.4 | 120.7 | 4X19 | 3.5 | 4.6 | 3000 |
| 65 | 55.68 | 104.80 | 177.8 | 139.7 | 4×19 | 3.5 | 4.8 | 3000 |
| 80 | 70.90 | 127.00 | 190.5 | 152.4 | 4X19 | 3.5 | 5.0 | 3000 |
| 100 | 94.30 | 157.20 | 228.6 | 190.5 | 8X19 | 4.0 | 5.8 | 3000 |
| 150 | 114.10 | 215.90 | 279.5 | 241.3 | 8X22.2 | 5.0 | 6.8 | 3000 |
| 200 | 195.10 | 269.90 | 342.9 | 298.5 | 8X22.2 | 5.0 | 7.9 | 2000 |
| 250 | 247.40 | 323.90 | 406.4 | 362.0 | 12X25.4 | 5.0 | 8.8 | 2000 |
| 300 | 297.00 | 381.00 | 482.6 | 431.8 | 12X25.4 | 5.0 | 9.0 | **** |
Ensures secure and safe flow direction
Performs reliably in elevated heat conditions.
Minimizes turbulence and pressure drop
Handles aggressive chemicals without degradation.
Yes, we offer custom PTFE lined elbows with options for different sizes, angles, and lining thicknesses to match your system design and performance requirements.
Yes, PTFE lined elbows are non-toxic, hygienic, and well-suited for use in food, beverage, and pharmaceutical industries.
PTFE lined elbows are available in standard sizes from 1” to 12”, with custom sizes available upon request to meet specific project needs.
Yes, PTFE lined elbows can typically endure temperatures up to 230°C, depending on the pressure rating and application conditions.
A PTFE lined elbow is used to redirect the flow of fluids in piping systems that handle corrosive materials, offering excellent resistance to chemicals, pressure, and temperature fluctuations.
